Compound Fertilizer Production Line

Home / Products / Compound Fertilizer Production Line / Horizontal Mixer
  • Horizontal Mixer
Compound Fertilizer Production Line

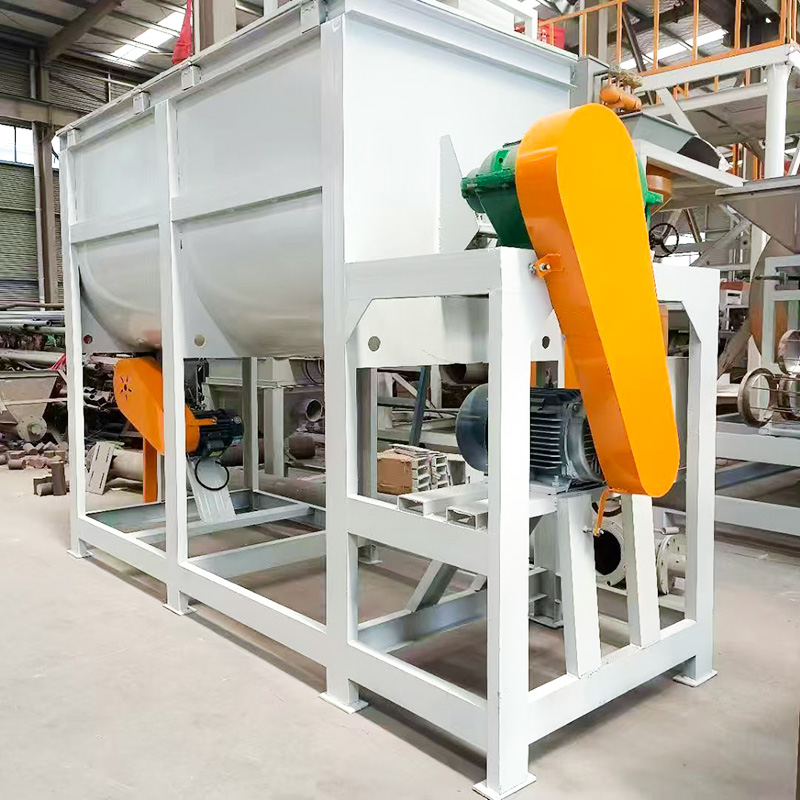

Horizontal Mixer

This horizontal mixer is a new generation of mixing equipment developed by our company. It boasts a high mixing efficiency and minimal residue, making it suitable for blending organic and inorganic fertilizers. Specific features include: Thorough mixing of materials, enhancing mixing uniformity; a novel rotor structure allows the clearance between the rotor and the housing to be adjusted to near zero, effectively reducing material residue; and a rotor design that can also crush larger materials. The overall structure is more rational, the appearance is aesthetically pleasing, and operation and maintenance are easy. To ensure proper operation, please read the instruction manual carefully to avoid damage.

CONTACT US

+
PREV Pan Mixer (Vertical Mixer) NEXT Twin-Shaft Mixer
  • SPECIFICATIONS
  • CONTACT US

  • The horizontal mixer can be divided into three parts:

    1. Frame part: The working body of the machine is installed and fixed on the frame. The frame of the machine is welded with high-quality carbon steel plates and channel steels, and has passed strict product certification and specific process requirements, and has achieved the purpose of this machine;

    2. Transmission connection part: The motor drives the pulley, V-belt, and reducer to rotate the main shaft. The transmission reducer and the main working part use nylon pins (or sprockets) as transmission connectors to transmit drive, which is convenient for assembly and maintenance;

    3. Mixing and stirring working part: The transmission is transmitted to the main shaft by the transmission wheel through the pin coupling (or sprocket). The other spiral stirring blades welded to the main shaft rotate synchronously, turning the material evenly in the mixing chamber, so that the material can be fully mixed, thereby reducing the amount of residual material. After a period of mixing, the material flows out from the special discharge port at the bottom of the machine body.
