Pan Mixer (Vertical Mixer)

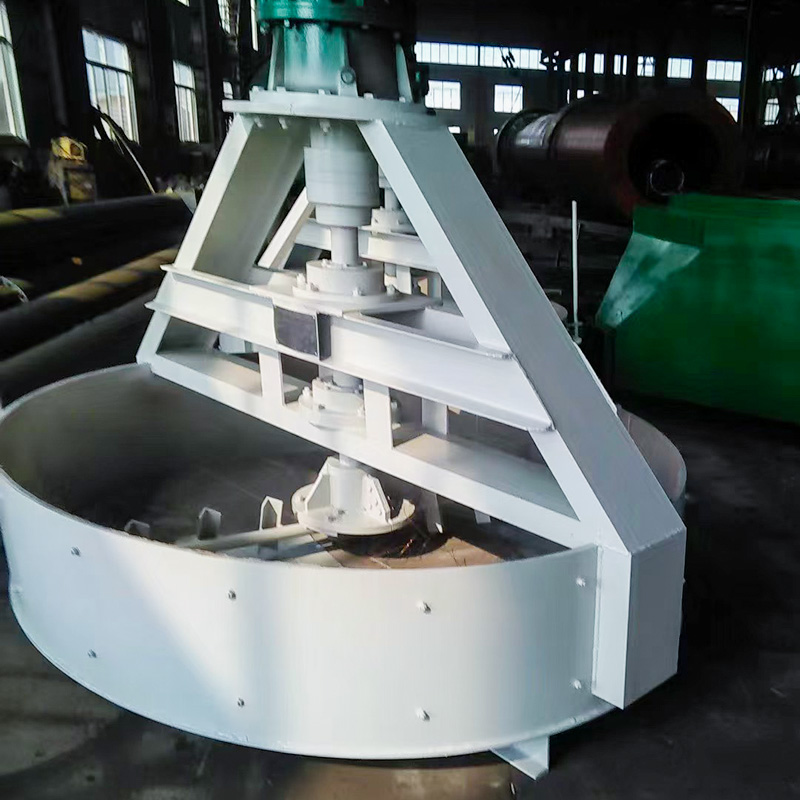

A pan mixer is a common type of mixing equipment. It consists of a mixing pan, a discharge port, agitator arms, a frame, a gearbox, and a transmission mechanism. Its characteristic feature is that the output shaft of the reducer drives the mixing spindle, which is equipped with fixed agitator teeth. These teeth drive the agitator to thoroughly mix the materials. This mixer has a long service life, is energy-efficient, compact, and capable of continuous operation.

CONTACT US

+
PREV No previous article NEXT Horizontal Mixer
  • SPECIFICATIONS
  • CONTACT US

  • Pan mixers are primarily used for mixing raw materials. (The pan is lined with polypropylene or stainless steel sheets, making it less prone to sticking.) It is wear-resistant and utilizes a cycloidal pinwheel reducer, resulting in a compact structure, easy operation, uniform mixing, and convenient unloading and conveying.

  • Message Feedback
EXPLORE OUR FEATURED PRODUCTS
Excellent product with exquisite craftsmanship
  • Pan Mixer (Vertical Mixer) Pan Mixer (Vertical Mixer)

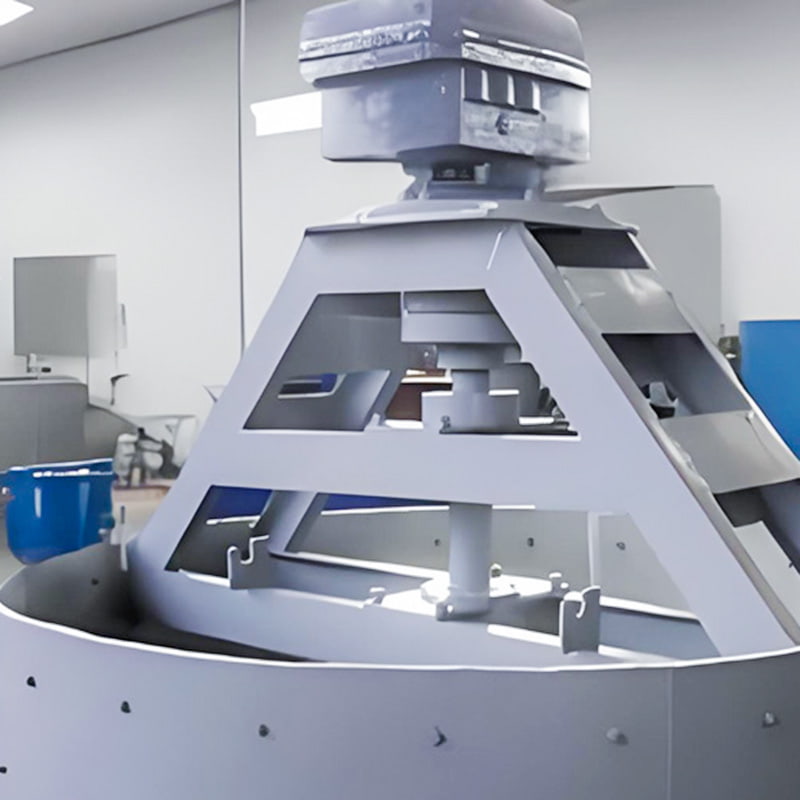

    A pan mixer is a common type of mixing equipment. It consists of a mixing pan, a discharge port, agitator arms, a frame, a gearbox, and a transmission mechanism. Its characteristic feature is that the output shaft of the reducer drives the mixing spindle, which is equipped with fixed agitator teeth. These teeth drive the agitator to thoroughly mix the materials. This mixer has a long service life, is energy-efficient, compact, and capable of continuous operation.
    READ MORE
  • Horizontal Mixer Horizontal Mixer
    This horizontal mixer is a new generation of mixing equipment developed by our company. It boasts a high mixing efficiency and minimal residue, making it suitable for blending organic and inorganic fertilizers. Specific features include: Thorough mixing of materials, enhancing mixing uniformity; a novel rotor structure allows the clearance between the rotor and the housing to be adjusted to near zero, effectively reducing material residue; and a rotor design that can also crush larger materials. The overall structure is more rational, the appearance is aesthetically pleasing, and operation and maintenance are easy. To ensure proper operation, please read the instruction manual carefully to avoid damage.
    READ MORE
  • Twin-Shaft Mixer Twin-Shaft Mixer
    A twin-shaft mixer uses two shafts with spiral blades rotating against each other to wet, agitate, and convey powdered materials, achieving a controlled humidity. This equipment is primarily used for humidifying and mixing raw materials in the fertilizer industry, ensuring thorough mixing of the materials while also providing conveying functionality. It offers high efficiency and a compact footprint. Its spiral blades are typically made of highly wear-resistant special alloys or composite ceramics for extended service life.
    READ MORE
  • Spray Granulation Dryer Spray Granulation Dryer
    The spray granulation dryer combines traditional spraying, granulation, and drying processes within a single rotary device, utilizing new technologies such as high-strength bricks, heat transfer, and internal classification, internal material return, and internal crushing.
    READ MORE
  • Rotary Drum Granulator Rotary Drum Granulator
    The rotary drum granulator is a machine for processing powdered or slurry materials into pellets. Its primary operating method is wet granulation. A sufficient amount of water or steam is used to moisten the base fertilizer within the drum, allowing it to undergo a complete chemical reaction. The drum's rotational motion then creates a squeezing force between the material particles, agglomerating them into pellets. The machine boasts an attractive appearance and is suitable for both cold and hot granulation, as well as the large-scale production of high-, medium-, and low-concentration compound fertilizers.
    READ MORE
  • Double-Roller Extrusion Granulator Double-Roller Extrusion Granulator
    The double-roller extrusion granulator is a new type of equipment developed by our company based on the twin-roller extrusion granulator. It utilizes a dry-free process, produces granules at room temperature, and forms the pellets in a single operation. It boasts a wide range of raw material compatibility and is suitable not only for granulating fertilizers, feed, and chemical industries, but also for rare earth, metallurgy, coal, biological agents, and environmental protection projects. To some extent, it fills a gap in the industry, is at the forefront domestically, and is also a major environmental protection project!
    READ MORE
  • Disc Pelletizer Disc Pelletizer
    The disc pelletizer is a new type of tilted disc pelletizing equipment. Its frame is welded from high-quality carbon channel steel, while the pelletizing disc is welded from high-quality carbon steel plates and channel steel, treated with other anti-corrosion treatments. The bottom is reinforced with multiple radial steel strips. The pelletizing rate can reach over 92%. The entire machine's transmission system is of paramount importance, ensuring its overall operation. The motor and reducer mounted on the drive adjustment frame are ISO/9001 certified. The motor drives the pulley, V-belt, reducer, and pinion, which in turn drives the large gear on the pelletizing disc to operate. Both large and small gears utilize high-frequency quenching, doubling their service life. The entire pelletizing disc is fixed to the drive shaft on the adjustment disc, with a taper-fit connection at the column head for a more streamlined design. The automatic material removal system, mounted above the pelletizing disc in a lower frame, is equipped with an automatic material removal plate to remove material adhering to the disc wall during production, significantly extending the machine's service life while saving labor.
    READ MORE
  • Agitator Granulator Agitator Granulator
    The agitator granulator is a new type of organic fertilizer granulation equipment, designed and manufactured using a new wet continuous push rod granulation process. It utilizes the high-speed mechanical agitation force and the resulting air dynamics to continuously mix, granulate, spheroidize, and densify the material within the granulator chamber. The material is evenly fed into the granulator chamber by a feeder, where it is agitated and pre-pressed by the agitator to form granules. It can granulate a variety of organic fertilizers, including raw materials such as livestock and poultry manure, composted manure, green manure, sea manure, cake fertilizer, peat, and other organic fermented fertilizers from municipal waste. It is suitable for light, fine powder materials such as chicken manure, pig manure, cow dung, charcoal, clay, and kaolin.
    READ MORE
  • Rotary Drum Dryer Rotary Drum Dryer
    An organic fertilizer dryer is a crucial piece of equipment in organic fertilizer production. Also known as a rotary drum dryer, its primary function is to remove moisture from organic fertilizer through heating, facilitating further processing or storage. It plays a crucial role in the entire production line, improving the quality and storage stability of organic fertilizer. Suitable for drying a wide range of organic waste, it significantly improves resource utilization.
    READ MORE
  • Rotary Cooler Rotary Cooler
    Rotary coolers are used in compound fertilizer production to cool fertilizer pellets at a certain temperature. Used in conjunction with a dryer, rotary coolers significantly increase cooling speed, reduce labor intensity, increase yield, further remove moisture, and lower the pellet temperature of compound fertilizer.
    READ MORE
  • Cage Crusher Cage Crusher
    A cage crusher is a type of crushing equipment designed based on the impact crushing principle. It consists of a frame, casing, large and small wheel assemblies, and two electric motors. During operation, one motor drives the large cage in forward rotation, while the other drives the small cage in reverse rotation. Material passes through the hopper and enters the inner wheel frame, where the steel bars repeatedly impact and crush the material, achieving a fine crushing effect. This design results in a simple structure, stable operation, and easy cleaning and maintenance.
    READ MORE
  • Chain Crusher Chain Crusher
    Chain crushers come in two configurations: vertical and horizontal. The vertical model features a single rotor, while the horizontal model has twin rotors. They are suitable for crushing bulk materials in the production of organic fertilizers and compound fertilizers, and are also widely used in the chemical, building materials, and mining industries. The crushing process utilizes high-strength, wear-resistant carbide chains that rotate synchronously. The inlet and outlet are strategically designed, ensuring uniform crushing, preventing sticking, and facilitating cleanup. The crusher utilizes new technology, high-quality steel, and an optimized system design, resulting in high throughput and high reliability.
    READ MORE
