LS Type Screw Conveyor

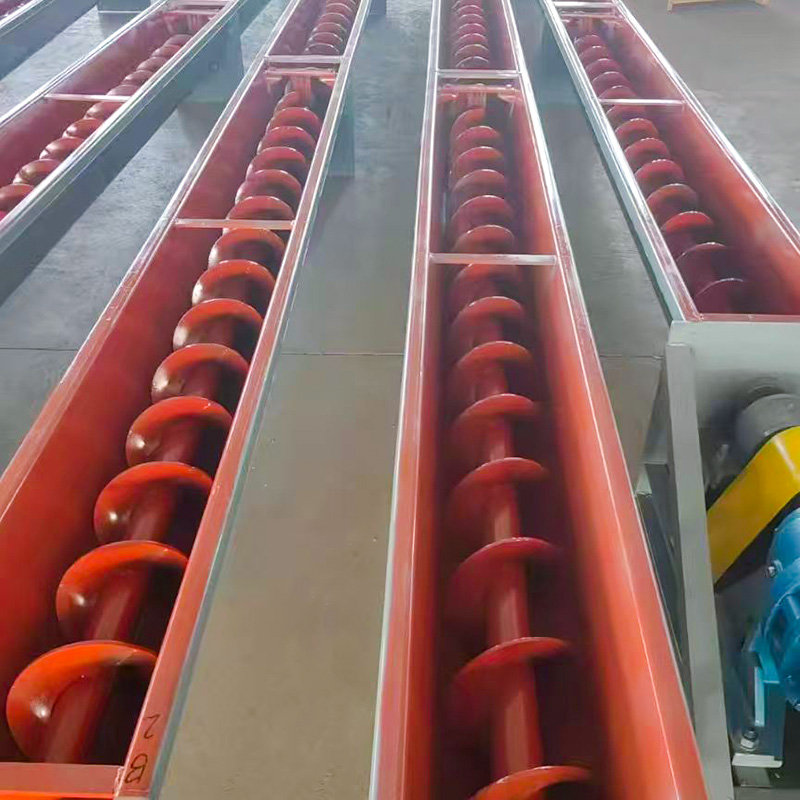

The LS-Type screw conveyor is an upgraded version of the GX-Type screw conveyor. LS screw conveyors are categorized by whether or not they have a central shaft: shafted screw conveyors and shaftless screw conveyors. A shafted screw conveyor consists of a screw, a U-shaped trough cover, an inlet and outlet, and a drive unit. A shaftless screw conveyor replaces the screw with a shaftless screw. The U-shaped trough has a replaceable liner, resulting in a simpler structure. Material enters through the inlet and is pushed by the screw through the outlet. The entire conveying process occurs within a sealed trough, reducing noise and odor emissions.

CONTACT US

+
PREV FU Chain Conveyor NEXT TH Bucket Elevator
  • SPECIFICATIONS
  • CONTACT US

  • The head and tail bearings of the LS-Type screw conveyor are relocated outside the casing. The hanging bearings use sliding bearings and lack dust seals. The bearings are generally made of powder metallurgy. Felt bearings are used for cement conveying. The hanging shaft and screw shaft are connected by sliders. The screw can be disassembled without moving the drive unit, and the hanging bearings can be disassembled without moving the screw. The hanging bearings can be lubricated without removing the cover. Designed and manufactured in accordance with the JB/T7679-95 "Screw Conveyor" standard, the LS-type screw conveyor boasts high reliability, long service life, strong adaptability, and easy installation and maintenance.

    LS-type screw conveyor product features and advantages:
    1. The LS-type screw conveyor offers a large load capacity and is safe and reliable.
    2. It is highly adaptable, easy to install and maintain, and has a long service life.
    3. Its compact size and high speed ensure fast and uniform conveying.
    4. A cleaning device is installed at the discharge end, resulting in low noise, strong adaptability, and flexible inlet and outlet placement.
    5. Its housing is constructed of seamless steel pipe, with flanges connecting the ends for excellent rigidity.
