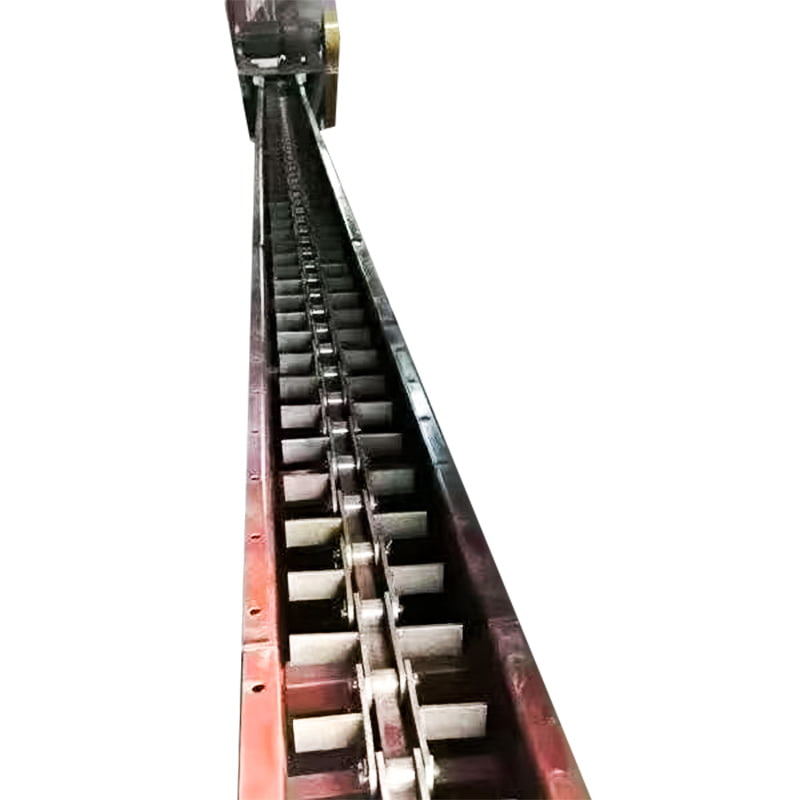

FU Chain Conveyor

Our FU-type buried scraper conveyor (chain conveyor) comes in six models, each with different trough widths. Suitable for conveying materials with a particle size of 4mm-25mm and a humidity level not exceeding 5%. By selecting different chain speeds, we can achieve a wide range of conveying capacities from 6 to 255m³/hour, meeting various production needs.

CONTACT US

+
PREV High-Angle Belt Conveyor NEXT Screw Conveyor
  • SPECIFICATIONS
  • CONTACT US

  • Applications

    Widely used in industries such as metallurgy, coal, transportation, electricity, building materials, chemicals, and machinery.

    Product Introduction

    The FU-type buried scraper conveyor (chain conveyor) is a continuous conveying device using a roller chain as the traction element. This type of equipment features a compact structure, excellent sealing, a rational layout, and easy operation and maintenance. It is primarily used for conveying abrasive powders, granular materials, and small lumps horizontally or at low angles.

    Outstanding Advantages
    ● Because the buried scraper conveyor utilizes the material's internal friction to move the material, it has low operating resistance and low energy consumption.
    ● High strength, low friction coefficient, and long service life.
    ● Wide conveying range, capable of high-capacity, long-distance conveying of various powdered, granular, and bulk materials with temperatures below 150°C.
    ● The conveying process is carried out in a confined space, ensuring a safe and reliable seal, making it particularly suitable for conveying volatile, corrosive, and other special media.

    Working Principle
    The FU-type buried scraper conveyor operates by rotating a drive sprocket with a transmission mechanism, and a conveyor chain with scrapers. It meshes with the driving sprocket and moves with it; when the material is added from the feed port, the material is subjected to the pulling force in the same direction as the movement brought by the conveyor chain in the machine trough, which increases the internal friction and internal pressure between the materials. When the friction force is greater than the friction force between the material and the machine trough wall, the material moves forward driven by the conveyor chain, and the increased internal pressure ensures the stability of the material layers, forming an overall continuous flow. When the ratio of the material layer height to the machine trough width meets certain conditions, the material flow is stable, and the material speed is approximately equal to the chain speed. At this time, the material can be continuously and stably conveyed and unloaded from the discharge port.
