Drum Screen

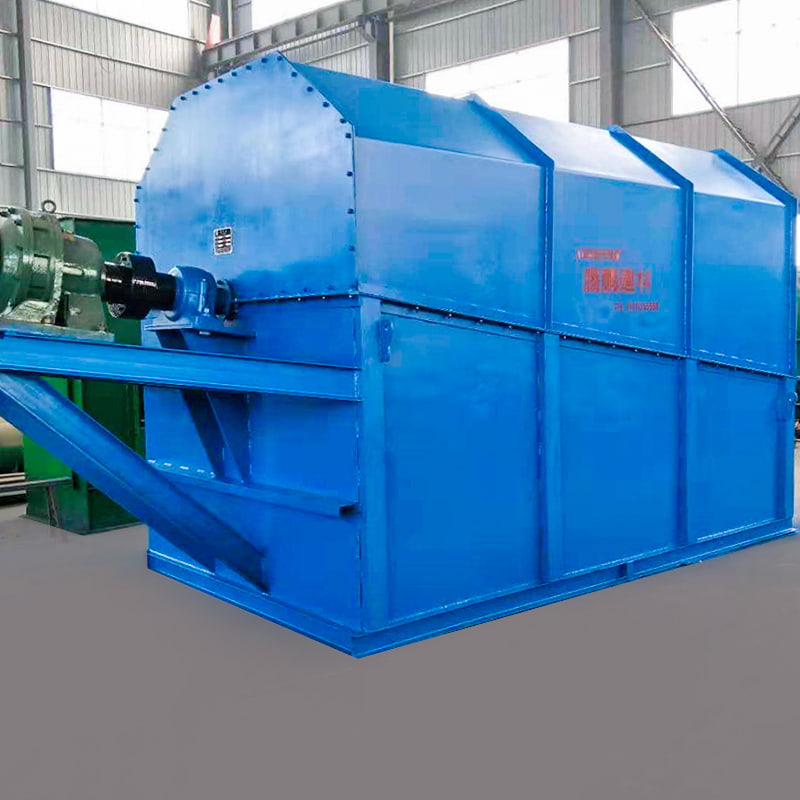

The GS Drum Screen is a specialized equipment for grading and screening materials. Specifications range from GS10×30 to GS25×110, depending on drum diameter and length. Drum diameters range from 1-2.5m, lengths from 3-11m, and outputs from 1-70t/h.

CONTACT US

+
PREV YK Vibrating Screen NEXT Circular Vibrating Screen
  • SPECIFICATIONS
  • CONTACT US

  • Applications

    Ceramic aggregate, mining, building materials, transportation, energy, and chemical industries.

    Product Introduction

    The GS Drum Screen is a mineral processing equipment that grades materials based on particle size. It is generally used for grading and screening medium- and fine-grained materials. It features stable operation, low energy consumption, easy maintenance, and a simple and flexible process layout. It is widely used in grading products in the mining, building materials, transportation, energy, and chemical industries, and is particularly suitable for grading and screening ceramic aggregate.

    Outstanding Advantages
    ● High processing capacity and high screening efficiency
    ● Rational technical parameters and high structural strength
    ● Reliable operation and low noise
    ● Simple operation and convenient maintenance

    Operating Principle
    After the crushed stone enters the drum, it is screened as the drum rotates. Meanwhile, the larger stone flows forward along the inclination of the drum and is gradually screened out through screens of different mesh sizes. After screening, the stone of the corresponding particle size falls into its respective hopper and is then transported manually or by gravity to the finished product pile.
